How to Wire and Install an Electrical Outlet Receptacle?

What is an Electrical Outlet, Receptacle or Socket Outlet?

Electrical Outlet (NEC) is also known as Receptacle and more commonly a Socket Outlet (IEC). According to NEC, an outlet is the point(s) in an electrical wiring system where current can be taken and utilize by electrical appliances and equipment by plugging them in it.

An outlet receptacle where one or more receptacle are installed or a supply contact device installed at the outlet to connect an electrical load through plugs and switches.

• Related Post: How to Wire Combo Switch and Outlet?

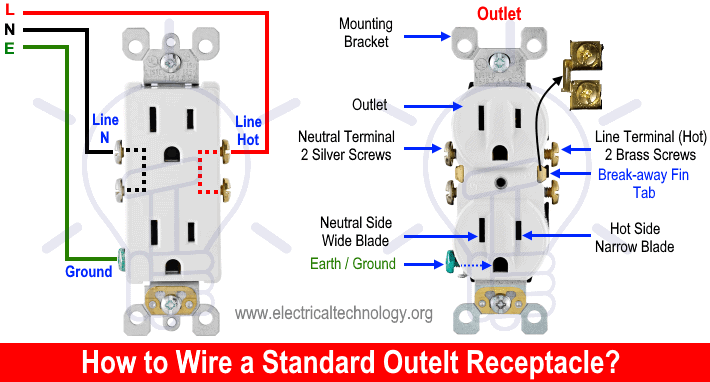

Ordinary outlet or standard outlet has screws (terminals) on both sides. The brass screws should be connected to the line (hot, live or phase) wire while the silver screws should be connected to the Neutral wire. In other words, the hot wire from main breaker should be connected to the narrow blade terminal where the Neutral wire should be connected to the wide blade terminal. The ground wire is connected to the ground terminal (mostly green color screw).

Keep in mind that the brass screws (for hot terminals) are electrically bounded to each other by a break way fin (tab) hence, connecting one brass screw to hot wire will feed the power to the second brass screw as well. In some case, you may remove the breakaway fin tab between the two brass screws (for hot wire) and split the outlet for other specific application (we will show in following wiring diagrams).

• Related Wiring: How to wire a GFCI Outlet? – GFCI Wiring Circuit Diagrams

In today wiring tutorials, we will be showing that how to wire and install an electrical outlet in different ways.

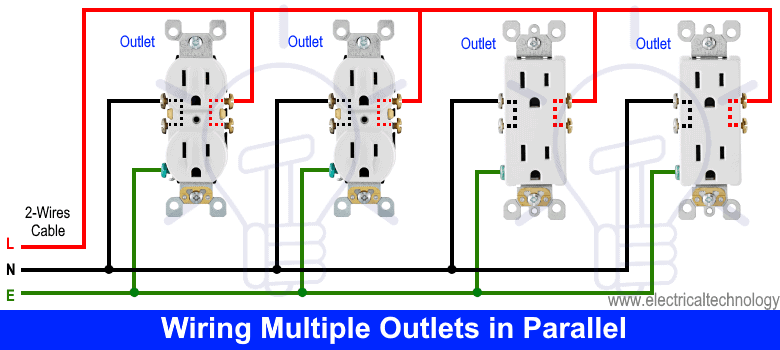

Wiring Multiple Outlets in Parallel

In this simple wiring diagram, multiple outlets have been connected in parallel. Each outlet is independent of each others as they are wired to separate cables. Keep in mind that series connection of outlet is against the NEC code (also it doesn’t make sense as if one of the outlet wires cuts or one faulty outlet will make the whole circuit useless) except GFCI and AFCI receptacles.

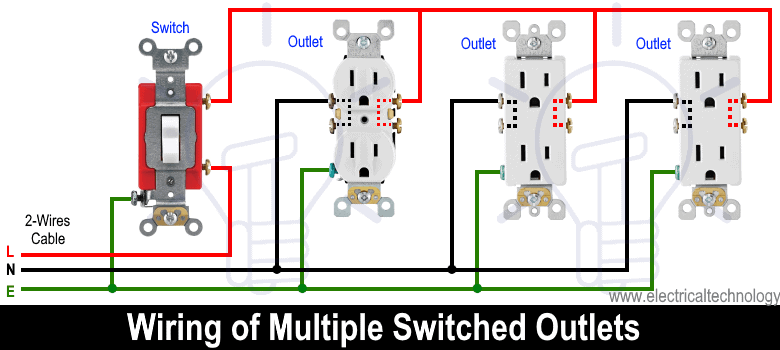

Wiring of Multiple Switched Outlets

The following wiring diagrams show that multiple outlets are wired to a single pole (SPST switch, one-way or two way in US) switch. As shown in the fig, the switch is firstly installed in the wiring the hot wire from switch feeds all the other parallel connected outlets hence, the outlet ON/OFF operation can be controlled through the switch.

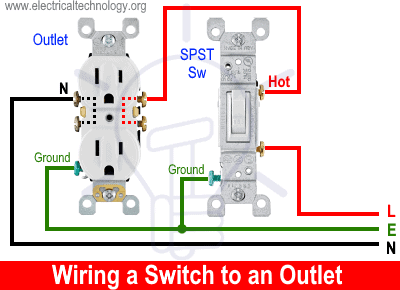

Wiring a Switch to an Outlet

In this wiring, a switch is added to to an existing outlet by removing the hot wire from outlet brass terminal and connected to the first terminal of switch. The second terminal of switch then connected back to the brass terminal of outlet. This way, the outlet is wired and controlled (ON/OFF) through the switch.

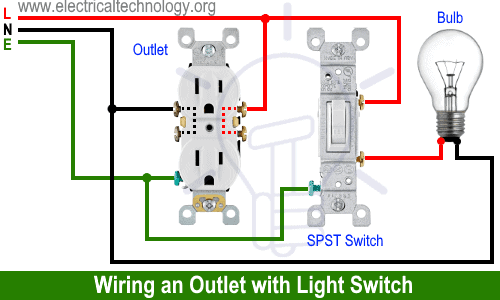

Wiring a 15A Outlet with Light Switch

In this wiring, a light switch has been added to the existing outlet. The hot terminal of outlet is connected to the first terminal of switch and the second terminal of switch is connected to the lighting point. Finally, the neutral wire from outlet is connected to the light bulb.

• Related Post: How to Wire GFCI Combo Switch and Outlet

Wiring a Split Switched Outlet

In this wiring, the outlet operation has been split into two parts i.e. the upper outlet is controlled through the switch while the lower portion is always hot. To do this, simply remove the breakaway fin (tab) between the brass terminals (hot) as shown in fig. Connected the switch output (hot) to the upper brass terminal and the lower hot terminal should be connected to the switch input hot wire.

In simple words, a common hot wire should be connected to the first terminal of switch and lower hot terminal of outlet. The second terminal of switch (as hot) should be connected to the upper hot terminal of outlet. Finally, connect the neutral and ground wire accordingly as shown in fig below.

This way, the ON/OFF operation of upper portion (outlet) is controlled by the switch while the lower outlet is always hot and active.

• Related Post: How to Wire a GFCI Circuit Breaker?

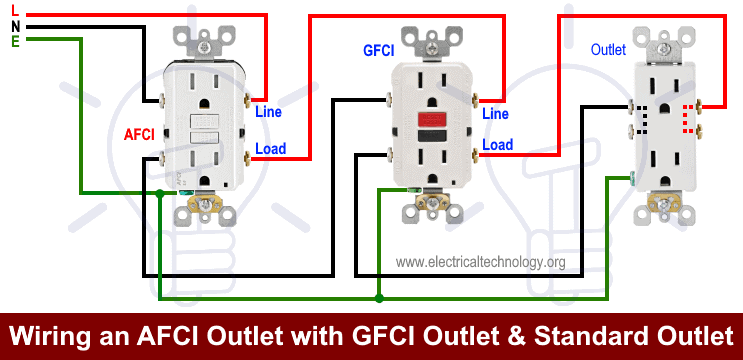

Wiring an AFCI and GFCI to the Outlet

In this wiring, the outlet is connected to the load terminals of GFCI where the GFCI is connected to the load terminal of AFCI. The standard outlet is both AFCI and GFCI protected. You can use both AFCI/GFCI protection in single unit instead of two outlets for AFCI and GFCI protection. This wiring is also known as series wiring of outlets which is only acceptable in case of AFCI or GFCI.

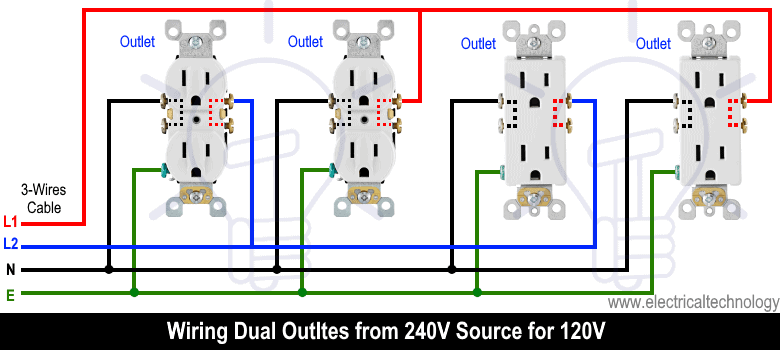

Wiring Dual Outlets from 240V Source for 120V

In this wiring, the first and 3rd outlet hot terminals are connected to the Line 2 (Blue) and the second and last outlets hot terminals are connected to the Line 1 (Red). The neutral is connected from the main breaker to all outlets neutral terminal. Ground wire is connected to the outlets as well as shown in the fig. This way, all the dual outlets are connected to the single line of 240V and can supply 120V to the appliances.

• Related Post: How to Wire an AFCI Outlet?

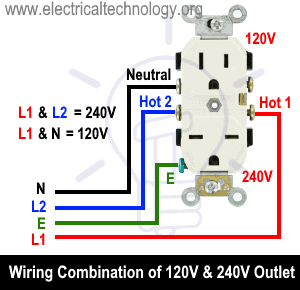

Wiring Combination of 120V and 240V Outlet

In this special wiring, a dual outlet is connected to both 120V and 240V where the upper portion provides 120V and the lower outlet provides 240V supply voltage. The special receptacle outlet 5031-I, 5842-I are used in these kind of wiring.

To do this, connect Line 1 and Line 2 to the lower hot terminals respectively. Connect the neutral and ground to the brass terminal and ground terminal respectively.

Keep in mind that you can’t run more than 20A at once from single outlet due to switch rating (Power = Voltage x Current) . For example, if a 15A air condition is connected to the upper 240V outlet and 10A, 120V heater to the lower terminal, the overall amperage is exceeding then than the switch rating. Alternatively, you can plug 100W bulbs to the lower 120V outlet, no matter if the upper outlet of 240V, 15A is operational for air condition as the total amperage is not exceeding the 20A for specified outlet.

• Related Post: How to Wire an AFCI Breaker?

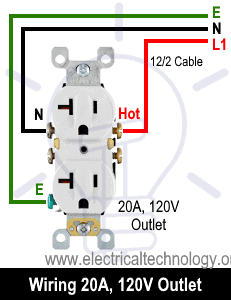

Wiring 20A, 120V Outlet

In this wiring, a 20A, 120V outlet is connected to the 120V supply through hot, neutral and ground wire.

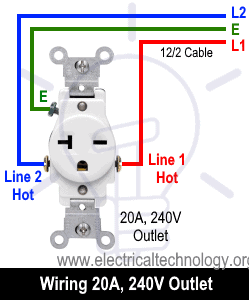

Wiring 20A, 240V Outlet

In this wiring, the line 1 and line 2 is connected to the brass terminals accordingly. No need of neutral is need in 240V. The ground wire is connected to the ground terminal.

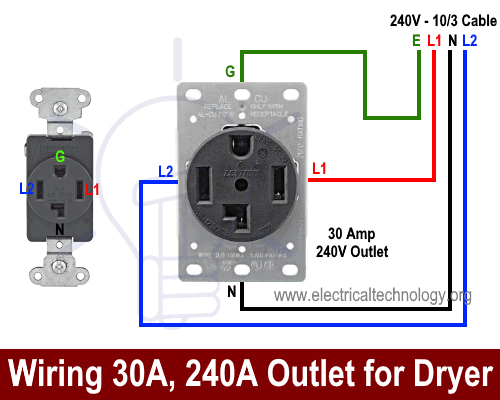

Wiring 30A, 240V Outlet for Dryer

In this wiring, a 30A, 240V outlet is wired for dryer where the neutral is needed as well. The Line 1, Line 2, Ground and Neutral wires are connected to the related terminals via 10 gauge 3 wires cable from separated breaker.

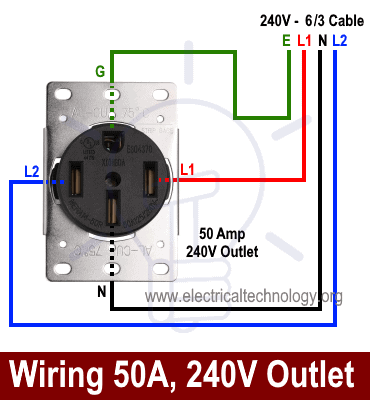

Wiring 50A, 240V Outlet

For high loads and amperage, the Line 1, Line 2, Neutral and ground is connected through a 6 gauge 3 wires cable from separate breaker to the related terminals of hot 1, hot 2, neutral and ground terminal as shown in fig below.

• Related Post: How to Wire an AFCI Combo Switch

General Information about Electrical Outlets:

Note: We have used Red for Hot, Black for Neutral and Green for Ground for illustration purpose only. Follow your own area wiring color codes according to NEC, IEC etc.

• The brass screws should be connected to the Hot (line, live or phase) wire (Black, Brown or Red).
• The silver screws should be connected to the Neutral wire (White or Blue)
• The green screw should be connected to the ground / earth wire (Green/Yellow or naked)
• If there is no color coded screws on outlets, refer to the user manual or contact a licensed electrician.
• Neutral Wire is not required in 240V outlets wiring.
• If there are four prongs in an outlet, a Neutral wire is needed then and four wires from the breaker should be connected to the outlet i.e. 2 hot line as (Line 1 and Line 2), a Neutral and ground wire.
• Use the suitable voltage and ampere rating of switch with appropriate wire size and proper size MCB according to the load rating.

Precautions:

• Switch off the main circuit breaker to make sure the power supply is OFF before wiring an outlet.
• Contact the authorized and licensed electrician for outlet installation if you are not sure about the wiring diagrams.
• The author will not be liable for any losses, injuries, or damages from the display or use of this information or if you try any circuit in wrong format. So please! Be careful because it’s all about electricity and electricity is too dangerous.
