How to Toggle Electric Water Heater Between 120V and 240V?
How to Switch Water Heater Circuit Between 240V and 120V using Switches?
In electric water heater wiring series, we will be showing how to change the water heater input voltage from 120V to 240V and vise versa using 3-way switch, DPDT switches and T106 timer. This way, we will be able to toggle the water heater between two supply voltage sources.
This method is used to reduce the electricity bill. In other words, you can run the electric water heater on 240V AC when prices are lower or same price rate for peak hours and normal operation or when faster recovery of hot water is needed.
You can switch back and run the electric water heater on 120V during the peak hours to reduce the electric bill or less hot water is needed.
Keep in mind that the same power rating water heater can be operate on both 120V or 240V AC
As we know that the same water heater rated for 240V can be operated on 120V. Keep in mind that you can’t operate a 120V water heater on 240V AC. If so, the heater element may damage or burn out which may leads to fire. See the following guidelines.
- ❌ You can’t connect a 120V rated water heater to 240V or 277V
- ❌ You can’t connect a 240V rated water heater to 277V or 480V
- ✔️ You can connect a 240V water heater to 208 or 120V AC supply. (Slow heating)
For the last one, it heating operation will slower 1/4 and suitable option for off peak operation.
When we operate a 240V AC electric water heater on 120V AC supply voltage, it will reduce the heat dissipation amount in water heater tank. In other words, a 4500 Watts water heater will heat slower at 120V AC instead of 240V AC because the overall wattage drops when voltage reduced. This is the same case when we supply 120V to 240V rated light bulb, it will glow dimmer as compared to the rated supply of 240V.
- Related Posts: How to Toggle between Two Heat Pumps using 240V Twin Timer?

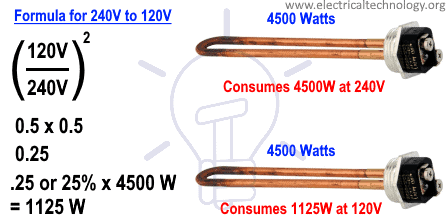

Conversion formula for 240V AC to 120V AC
In case of 4500 Watts water heater elements,
( 120V / 240V )2
0.5 x 0.5 = 0.25
This way, a 4500 Watts water heater will consume
4500 Watts when operated on 240V and
4500 W x 0.25 = 1125 W
1125 Watts when operated on 120V.
Let see below the different methods showing conversion from 120V and 240V AC circuits for water heater.

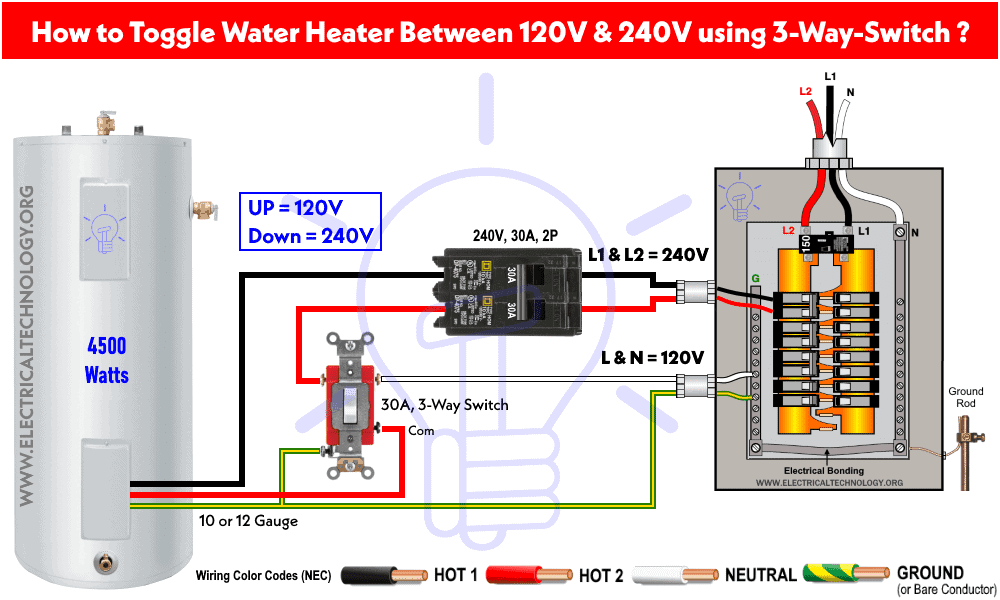

Toggle water heater between 120V and 240V using 3-Way Switch
To switch the circuit between 120V and 240V for water heater by using a 30 amperes 3-way switch, just connect a line (L1) from main distribution board via 30A circuit breaker to the water heater. Connect the second line (L2) from CB and neutral from DB to the upper terminal and lower terminal of three way switch respectively. The common terminal on left should be connected to the water heater. Don’t forget to connect the 3-way switch and water heater to the ground/earth wire.
Working of the Circuit:
- Up Position of 3-Way Switch = L1 and L2 are connected to the Water heater = 240V AC
- Down Position of 3-Way Switch = L1 and Neutral are connected to the water heater = 120V AC.
Click image to enlarge

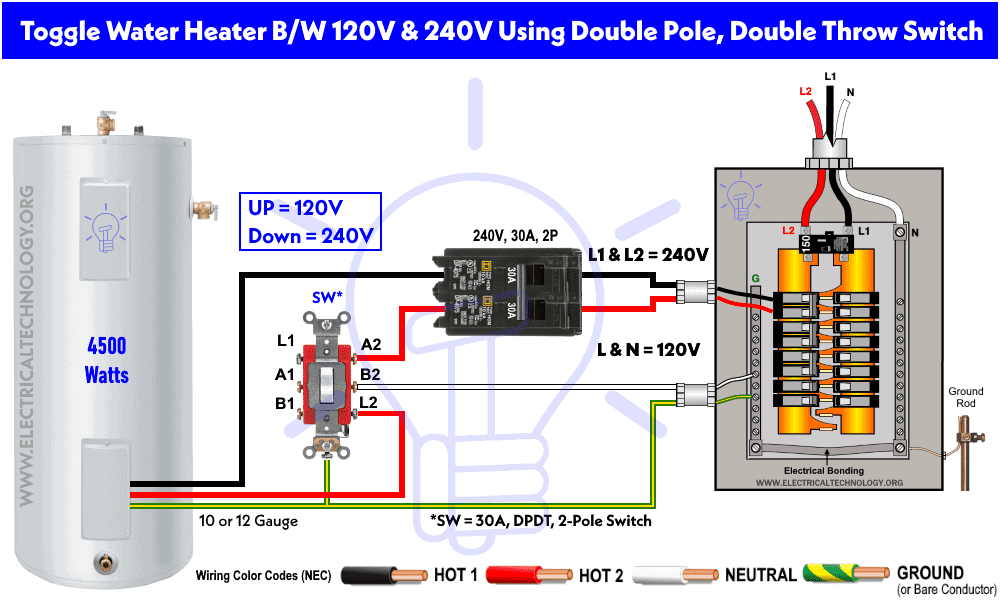

Toggle water heater between 120V and 240V using Double Pole Double Throw Switch
The same operation can be done via two pole DPDT (double pole double through switch) as above. To do that, just connect the L1 directly to the water heater through 30A CB. L2 from CB and Neutral from main distribution board should be connected to the A2 and B2 terminal on the right side of 2 pole DPDT switch. The L2 terminal of DPDT switch should be connected directly to the water heater. Do the proper grounding to the double pole double throw switch and water heater as shown below.
Working of the Circuit:
- Up Position of DPDT Switch = L1 and Neutral are connected (through B2 and L2 terminals) to the water heater = 120V AC
- Down Position of DPDT Switch = L1 and L2 are connected (through A2 and L2 terminals) to the water heater = 240V AC.
Click image to enlarge

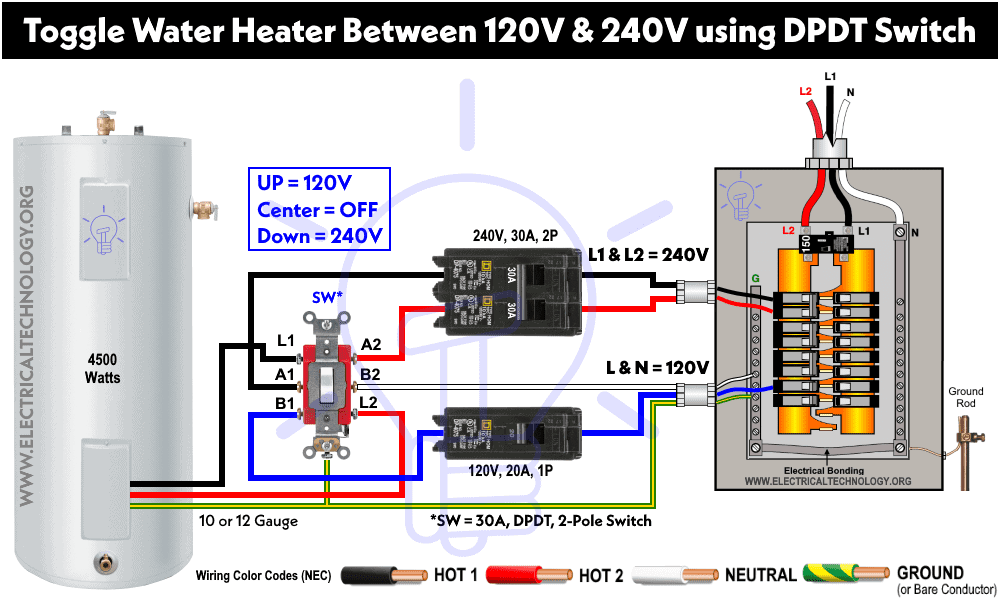

Toggle water heater between 120V and 240V using DPDT Switch with Center Off
The above two mentioned methods are only switch the circuit between 120V and 240V. To add an additional operation i.e. 120V, Switch Off and 240V, we may use double pole DPDT switch center-off.
To do that, just follow the wiring configuration as given in the below wiring diagram. Use a 30A circuit breaker for 240V and 20A circuit breaker for 120V.
Working of the Circuit:
- Up Position of DPDT Switch = L and Neutral are connected (through B1, L1 and B2, L2 terminals) to the Water heater = 120V AC
- Center Position of DPDT Switch = Switch OFF – No supply to the water heater.
- Down Position of DPDT Switch = L1 and L2 are connected (through A1, , A2 and L2 terminals) to the water heater = 240V AC.
Click image to enlarge

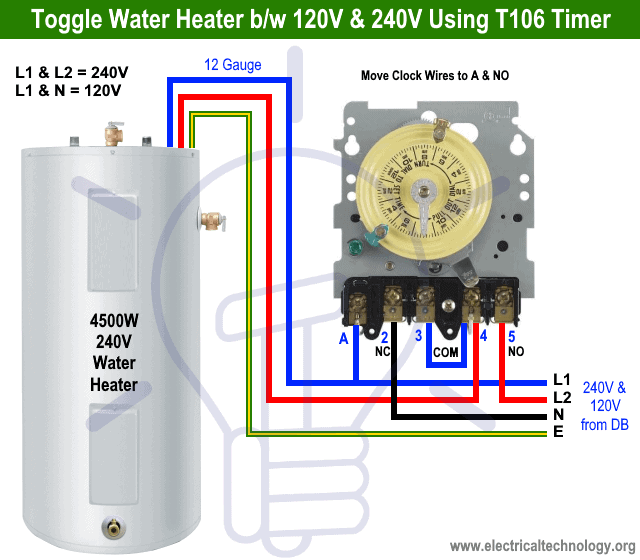

Toggle water heater between 120V and 240V using T106 Timer
To do that, just move clock motor wire from COM to NO (Normally Open) terminal. This configuration will work for both 120V and 240V whereas 120V will consume 25% of the total wattage rating of 4500 Watts which is 1125 Watts in case of 120V.
Additional methods for 120V to 240V water heater and vise versa are using automatic or manual transfer switch (Change over switch), using timer (T106, T1906, T1975 ect) or SPDT timer with dry NO NC relay setting the DIP switch for 120V.
Note: Perform a continuity test for switch terminal before wiring and installation. Use 10 gauge wire for 240V and 12 Gauge for 120V breaker from the main panel box (load center or breaker panel) in the above wiring tutorials. Follow the user manual guide or contact a licensed electrician for proper installation. All the above wiring diagrams are for non-simultaneous (non-contentious) heating elements and thermostat operation.
Note: Red color illustrates the Line or Phase wire and Black color shows the Neutral Wire in the above figures. You may follow your regional wiring color codes i.e. IEC or NEC.
- Related Posts: How to Reduce Runtime of Air-Conditioner During Peak Hours?
Wiring Color Codes – 120V and 240V
We have used Red for Live or Phase, Black for Neutral and Green for Earth Wire. You may use the specific area codes i.e. IEC – International Electrotechnical Commission (UK, EU etc) or NEC (National Electrical Code [US & Canada] where;
NEC:
- Single Phase 120V AC:
Black = Phase or Line, White = Neutral and Green/Yellow = Earth Conductor
- Single Phase 240 – 208 AC:
Black = Phase 1 or Line 1, Red = Line 2, Blue = Line 3, White / Gray = Neutral and Green/Yellow = Earth Conductor
IEC:
- Single Phase 230V AC:
Brown = Phase or Line, Blue = Neutral and Green = Earth Conductor
