Insulating And Dielectric Materials – Types, Properties & Applications
An Introduction to Insulating And Dielectric Materials
Definition of Insulating and Dielectric Materials
An electrical insulating material can be defined as the material that does not allow electric current to pass through it.
For electrical applications a particular category of insulating materials is used to separate electrically the conducting parts of equipment from each other and from earthed and “no live” components of equipments and networks.
Dielectric materials. A dielectric is an electrical insulating material that can be polarized by an applied electric field (notation: E; unit: volt per meter – V/m). When a dielectric is placed in an electric field, electric charges do not flow through the material as they do in a conductor, but only slightly shift from their average equilibrium positions causing dielectric polarization, which an example can be seen in Figure 1.

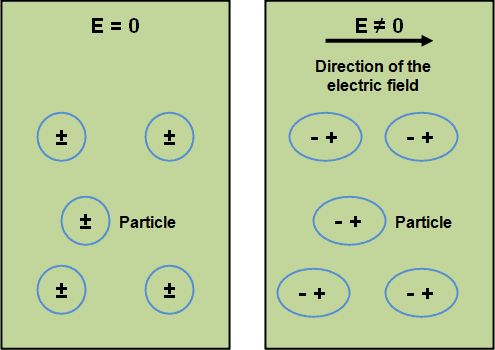

Figure 1 – Dielectric polarization
Due to dielectric polarization, positive charges are displaced toward the field and negative charges shift in the opposite direction, what creates an internal electric field which reduces the overall field within the dielectric itself.
Difference between Insulator, Insulating and Dielectric Materials
From the above statements, It has been cleared that all dielectrics are insulators, but all insulators are not dielectrics.
In very simple words,
Insulator or Insulating Material:
are those substances which will not allow the flow of electron through them due to very low free electrons in it and they are having low dielectric constant (Relative permittivity = εr). It is same like resistance of a resistor.
Examples: Porcelain insulators used in the transmission & distribution poles and towers, rubber, glass, plastic etc.
Dielectric or Dielectric Materials:
are those substances same as insulators but will allow the flow of electron through them when subjected to an external electric field as they can be polarized. It also can be defined as the ability to store charge (energy) by mean of polarization such in a capacitor. Also, they are having high dielectric constant (Relative permittivity = εr).
Examples: A common example of a dielectric is the electrically insulating material between the metallic plates of a capacitor, (such as mica, laminated paper). Other examples: air, ceramic etc.
- All dielectrics are insulators, but all insulators are not dielectrics.
- Everything is a conductor at some point of temperature or electric field due to breakdown as every insulator has its limits to withstand a potential difference across the material
Also read: Submarine Cables – Construction, Characteristics, Cables Laying & Joints
Types of Dielectric Materials
Dielectric materials are largely used in electrical equipments and networks, being the most common used the types indicated in Table 1,

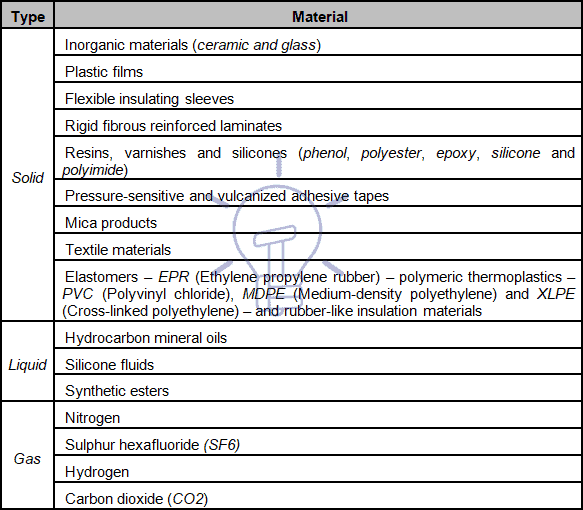

Table 1 – Common dielectric materials
Application of Dielectric Materials
A major application for inorganic materials is in high and medium voltage substation equipments and overhead lines as insulators or as bushings on high voltage transformers and switchgears.
Plastic films have been used as films in a variety of applications such as the insulation between foils in capacitors and slot insulation in rotating electrical machines.
Common use for flexible insulating sleevs is the protection of cables and components from the deleterious effects of mechanical and thermal damage, and may find application in electrical machines, transformers, domestic and heating appliances, light fittings, cable connections (joints and terminations) and switchgears.
Resins and varnishes are used by in the impregnation and coating of electrical equipment (dry type transformers, as an example) in order to improve its resistance to working conditions, to enhance its electrical characteristics and to increase its working life.
Elastomers and thermoplastics are commonly used in the insulation of power, control and communications cables.
Nowadays the principal uses of liquid dielectrics, mainly hydrocarbon mineral oils, are as an insulation and cooling medium for transformers, earth reactors and shunt reactors, capacitors and rheostats.
The important properties of dielectric liquids are therefore electric strength, viscosity, chemical stability and flashpoint.
Two gases already in common use for insulation are nitrogen and sulphur hexafluoride (SF6). Nitrogen is used as an insulating medium in some sealed transformers and Gas Insulated Lines (GIL), while SF6 is used in in high and medium voltage switchgears and circuit breakers, because of its insulating properties and its arc-extinguishing capabilities, and also in Gas Insulated Transformers (GIT) as an insulation and cooling medium.
However, due environmental conditions, in medium voltage installations (circuit breakers, contactors and capacitors) vacuum has nowadays a preferential use.
- You may also read: Corona Effect in Transmission Lines & Power System
Properties and Behavior of Dielectric Materials
The most important properties of dielectric materials are:
- Volume resistivity or specific resistance.
- Permittivity (notation: ε; unit: farad per meter – V/m), is defined as the resistance of the dielectric to an electric field in a particular medium.
- Relative permittivity, or dielectric constant (notation: εr – adimensional), which is defined as the ratio of the electric flux density produced in the material to that produced in a vacuum by the same electric field strength, or the relation between the permittivity of the dielectric and the permittivity of vacuum (notation: ε0 – ≈ 85×10−12 F/m): ε/ε0 .
- Dielectric strength, which is the ability to withstand electric stress without breaking down. It is usually quoted in kV/mm (typical values may range from 5 to 100 kV/mm).
- Dielectric loss, or electrical dissipation factor, which is defined as the ratio of the power loss in a dielectric material to the total power transmitted through it. It is given by the tangent of the loss angle and is commonly known as “tan δ”. In an ideal insulator the current that passes through it is totally capacitive (IC), but real insulators do not have 100% purity, this meaning that the current through the insulator as also a resistive component (IR), and we say that insulator has losses that are represented by tan δ, being δ the angle shown in Figure 2.
Figure 2 –

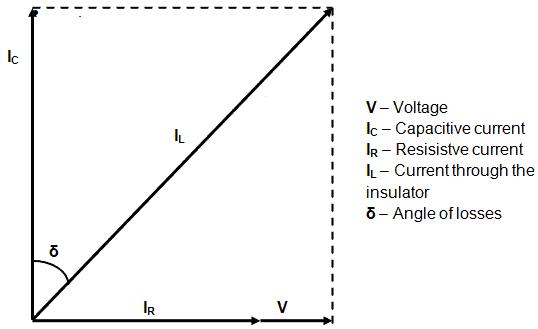

Figure 2 – Angle of losses and currents of an insulator
Also read: Resistor & Types of Resistors | Fixed, Variable, Linear & Non-Linear
Another significant aspect of all dielectric materials is the maximum temperature at which they will perform satisfactorily.
Generally speaking, dielectric materials deteriorate more quickly at higher temperatures and the deterioration can reach a point at which the insulation ceases to perform its required function.
This characteristic is known as ageing, and for each material it has been usual to assign a maximum temperature beyond which it is unwise to operate.
The ageing of a dielectric depends not only on the physical and chemical properties of the material and the thermal stress to which it is exposed, but also on the presence and degree of influence of mechanical, electrical and environmental stresses.
- You may also read: How to Test a Capacitor? 6 Ways to Check a Capacitor.
Dielectric materials may be deteriorated (premature ageing) when subjected to excessive heat and overvoltages and may be contaminated by other materials, such as copper particles, water and gas, causing dielectric failure.
The definition of a useful lifetime will also vary according to the type and usage of equipment; that must be taken into account when choosing the dielectric material for a particular application.
