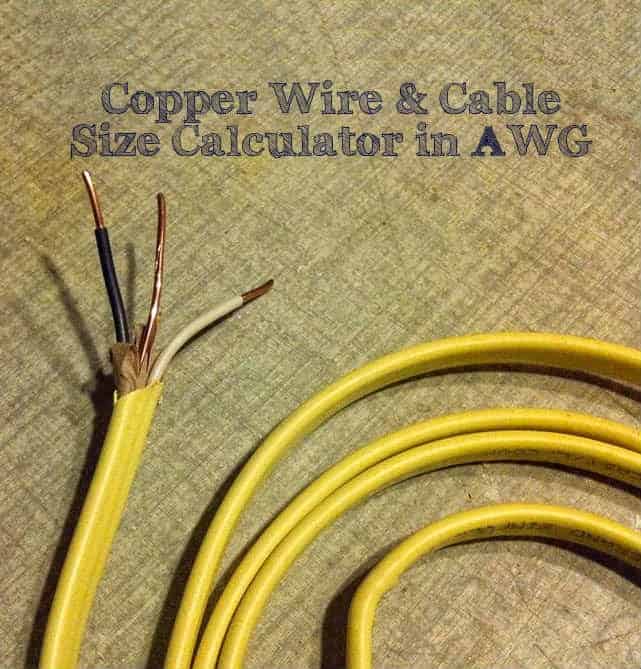

Wire and Cable Size in AWG Calculator for 1 and 3-Phase Load

Wire and Cable Size in AWG Calculator for Single and Three-Phase Load

There are multiple factors affecting wire size, including current carrying capacity, voltage drop, ambient temperatures, conductor material, frequency, cable bundling, installation type and method, load type, and local area codes (e.g., NEC and IEC).

If you are familiar with basic electrical calculations and tables, you can manually determine the suitable wire size for electrical wiring installations in both imperial and metric systems with the help of solved examples and related tables. Alternatively, you can use the AWG calculator to perform the same task for wire and cable sizing.

Wire & Cable Size Calculator in AWG

Calculating Wire/Cable Size formula for single Phase Circuits

Wire Circular mils = 2 x ρ x I x L / (%Allowable Voltage drop of source voltage)

Calculating Wire/Cable Size formula for Three Phase Circuits

Wire Circular mils = √3 x 2 x ρ x I x L / (%Allowable Voltage drop of source voltage)

Where;

  • ρ = Specific resistance or resistivity of Conductor
  • D = Distance in Feet (One way) i.e. ½ the total circuit length
  • I = Load Current

Note: the Value of ρ = Specific resistance or resistivity of Conductor is used here for copper and aluminum is 12.9 and 21.2 respectively at 75°C (167°F).

  • Also check the “Good to know” Section right after the calculator

Enter value, And click on calculate. Result will show the required quantity.

Select and Enter values:
Single Phase          Three Phase
Select Material:
Copper                 Aluminum
Voltage:
110 V120 V208 V220 V230 V240 V277 V440 V480 V600 V
Distance in Feet, One Way:
Total Circuit Amperes (A):

Minimum Wire Size:

Good to Know:<

If the wire size is greater than all gauges (i.e 0000 is largest one size of wire in), then electrical engineer measure it in CM, kCM or MCM instead of inches, because inch is a small unit of these kinds of wires. Where;

A circular mil (CM) is a unit of circular area with a diameter of one mil (one thousandth of an inch). It corresponds to 5.067×10-4 mm².

Where:

1000 CM (circular mils) = 1 MCM or 1 kcmil = 0.5067 mm², so 2 kcmil.

It is a unit for referring to the area of a wire with a circular cross section.
