How to Convert Capacitor μ-Farads to kVAR and Vice Versa? – For P.F Correction
How to Convert Capacitor kVAR to μ-Farads & Vice Versa for Power Factor Improvement?
Conversion of kVAR to μ-Farad & μ-Farad to kVAR

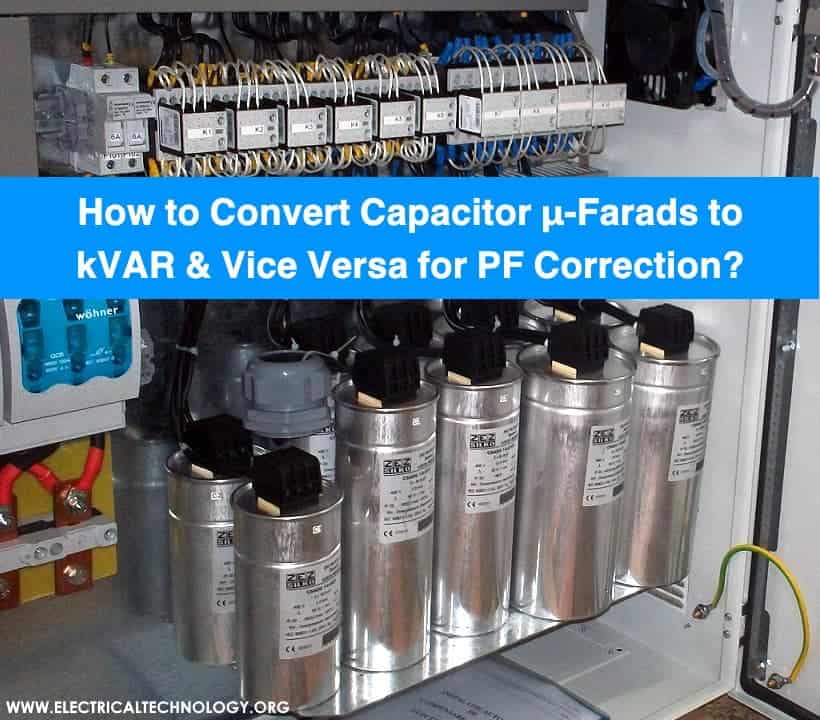

The following simple calculation tutorial shows how to calculate and convert the required capacitor bank value in microfarads and then convert to kVAR and vice versa. We will be using three simple methods to convert the capacitor kVAR in μ-Farads and conversion of microfarad in kVAR.
Let’s see the following examples which show how to find and convert the Required Capacitor bank value in both kVAR and Micro-Farads which is applicable in Power Factor improvement Calculation and capacitor bank sizing.
Related Posts:
- μ-Farad to kVAR Calculator – How to Convert Farads to kVAR?
- kVAR to Farad Calculator – How to Convert kVAR to μ-Farads?
Example 1:
A Single phase 400V, 50Hz, motor takes a supply current of 50A at a P.F (Power factor) of 0.6. The motor power factor has to be improved to 0.9 by connecting a capacitor in parallel with it. Calculate the required capacity of Capacitor in both kVAR and Farads.
Solution:
Calculate and Convert kVAR in Microfarads
(1) To find the required capacity of Capacitance in kVAR and convert it to micro-farad to improve the P.F from 0.6 to 0.9 (Three Methods)
Solution #1 (Simple Method using the Table)
Motor Input = P = V x I x Cosθ
= 400V x 50A x 0.6
= 12kW
From Table, Multiplier to improve PF from 0.60 to 0.90 is 0.849
Required Capacitor kVAR to improve P.F from 0.60 to 0.90
Required Capacitor kVAR = kW x Table Multiplier of 0.60 and 0.90
= 12kW x 0.849
= 10.188 kVAR
Solution # 2 (Classic Calculation Method)
Motor Input = P = V x I x Cosθ
= 400V x 50A x 0.6
= 12kW
Actual P.F = Cosθ1 = 0..6
Required P.F = Cosθ2 = 0.90
θ1 = Cos-1 = (0.60) = 53°.13; Tan θ1 = Tan (53°.13) = 1.3333
θ2 = Cos-1 = (0.90) = 25°.84; Tan θ2 = Tan (25°.50) = 0.4843
Required Capacitor kVAR to improve P.F from 0.60 to 0.90
Required Capacitor kVAR = P in kW (Tan θ1 – Tan θ2)
= 12kW (1.3333– 0.4843)
= 10.188 kVAR
Solution # 3 (Using μFarad to kVAR Calculator)
You may directly use the Farad and microfarad to kVAR conversion calculator.
Related Posts:
- Capacitor Bank in kVAR & µF Calculator for Power Factor Correction
- Power Factor Correction Calculator – How to Find P.F Capacitor in µF & kVAR?
(2) To find the required capacity of Capacitance in Micro-Farads and convert the Capacitor μ-Farads to kVAR to improve the P.F from 0.6 to 0.9 (Three Methods)
Solution #1 (Simple Method using the Table)
We have already calculated the required Capacity of Capacitor in kVAR, so we can easily convert it into Farads by using this simple formula
Required Capacity of Capacitor in Farads/Microfarads
C = kVAR / (2 π f V2) in microfarad
Putting the Values in the above formula
= (10.188kVAR) / (2π x 50Hz x 4002V)
= 2.0268 x 10-4
= 202.7 x 10-6
= 202.7μF
Solution # 2 (Classic Calculation Method)
kVAR = 10.188 … (i)
We know that;
IC = V / XC
Whereas XC = 1 / 2π x f x C
IC = V / (1 / 2π x f x C)
IC = V x 2π x f x C
= (400V) x 2π x (50Hz) x C
IC = 125663.7 x C
And,
kVAR = (V x IC) / 1000 … [kVAR =( V x I) / 1000 ]
= 400 x 125663.7 x C
IC = 50265.48 x C … (ii)
Equating Equation (i) & (ii), we get,
50265.48 x C = 10.188C
C = 10.188 / 50265.48
C = 2.0268 x 10-4
C = 202.7 x 10-6
C = 202.7μF
Solution # 3 (Using kVAR to μFarad Calculator)
You may use the kVAR to Farad and microfarad conversion calculator.
Capacitor μ-Farad to kVAR and kVAR to μ-Farad Conversion Formula
The following formulas are used to calculate and convert capacitor kVAR into Farads and Vice Versa
Required Capacity of Capacitor in Farads/Microfarads.
Convert Capacitor kVAR in Farads & Microfarads
- C = kVAR x 103 / 2π x f x V2 … in Farad
- C = 159.155 x Q in kVAR / f x V2 … in Farad
- C = kVAR x 109 / (2π x f x V2) … in Microfarad
- C = 159.155 x 106 x Q in kVAR / f x V2 … in Microfarad
Required Capacity of Capacitor in kVAR
Convert Capacitor Farads & Microfarads in VAR, kVAR and MVAR.
- VAR = C x 2π x f x V2x 10-6 … VAR
- VAR = C in μF x f x V2 / (159.155 x 103) … in VAR
- kVAR = C x 2π x f x V2 x 10-9 … in kVAR
- kVAR = C in μF x f x V2 ÷ (159.155 x 106) … in kVAR
- MVAR = C x 2π x f x V2 x 10-12 … in MVAR
- MVAR = C in μF x f x V2 ÷ (159.155 x 109) … in MVAR
Where:
- C = Capacitance in Microfarad
- Q = Reactive Power in Volt-Amp-Reactive
- f = Frequency in Hertz
- V = Voltage in Volts
Related Posts:
- What is Power Factor?
- Active, Reactive, Apparent & Complex Power
- Causes of Low Power Factor
- Disadvantages of Low Power Factor
- Power Factor improvement Methods with Their Advantages & Disadvantages
- Advantages of Power Factor improvement and Correction
- How to Calculate the Suitable Capacitor Size in Farads & kVAR for Power Factor Improvement.
