Sources and Causes of Low Power Factor
Causes and Sources of Poor Power Factor
In an electrical power system, power factor is the ratio of the real power (kW) to the apparent power (kVA). A low power factor means that the electrical load is not fully utilizing the available power, which can result in increased electricity costs and reduced system efficiency. In today’s post, we will discuss the main sources and causes of low power factor in a system.
The main cause of low power factor is inductive load. In a pure inductive circuit, the current lags 90° from the voltage, causing a large phase angle difference and resulting in a zero power factor. However, in circuits with both capacitance and inductance (except for resonance or tuned circuits where inductive reactance equals capacitive reactance (XL = XC), making the circuit resistive), a power factor exists due to the difference in phase angle (θ) between current and voltage caused by capacitance and inductance.
Causes of Low Power Factor
There are several causes of low power factor, including:
- Inductive Loads: Inductive loads, such as electric motors and transformers, consume reactive power from the system, which reduces the power factor (lagging PF). This is because inductive loads cause the voltage and current to become out of phase, which increases the reactive power component of the system. For example, an inductive load operates at:
- Full load, Pf = 0.8 -0.9
- Small load, PF = 0.2 -0.3
- No Load, PF may come to almost Zero (0). i.e. the PF in pure inductor load is zero.
- Capacitive Loads: Capacitive loads, such as capacitors, generate reactive power and can improve power factor. However, if the capacitance is too high, it can cause overcompensation and lead to a leading power factor. The power factor in a pure capacitive load is zero.
- Harmonics: Harmonics are non-linear distortions of the electrical waveform that can occur in systems with electronic loads, such as computers and other electronic equipment. These distortions can cause an increase in reactive power and reduce the power factor.
- Magnetizing Current: The load on a power system varies. During periods of low load, the supply voltage is increased, which increases the magnetizing current and causes a decrease in power factor.
- Undersized Wiring: Undersized wiring (especially in motors windings) can cause voltage drops and increase the reactive power in the system, which can lower the power factor.
- Long Distribution Lines: Long distribution lines can cause voltage drops and increase the reactive power in the system, which can lower the power factor.
- Unbalanced Loads: Unbalanced loads can cause uneven distribution of power, which can increase the reactive power component and lower the power factor.

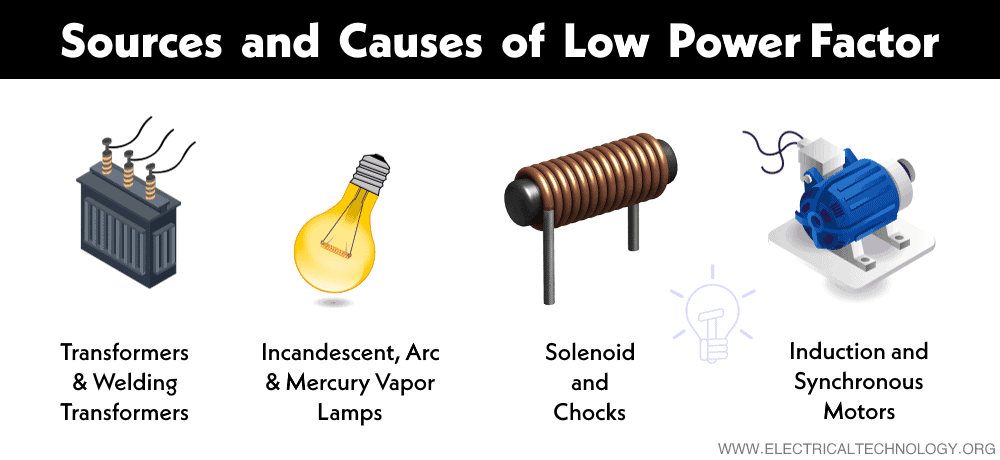

Sources of Poor Power Factor
Following are the main sources of poor power factor:
- Distribution Transformers: The PF depends on its design, loading and unloading. Generally, the PF of an unloaded transformer is very low.
- Incandescent lamps – (50% PF)
- Mercury vapor lamps – (40 – 60% PF)
- Induction motors – (30-90%)
- Synchronous motors – (Very low PF at under exited conditions)
- Welding transformers – (60%)
- Industrial heating furnaces
- Solenoid and chocks etc.
- Arc lamps
- Under exited synchronous motors working at load
- Not using rated wire size in motor windings
- Damaged bearings in motors
To improve the power factor (as low PF has many disadvantages), several solutions can be implemented, such as the installation of power factor correction equipment, upgrading electrical equipment to reduce losses, and optimizing system design to reduce reactive power consumption. Understanding the causes of low power factor is essential for identifying areas for improvement and ensuring efficient and cost-effective operation of electrical systems.
