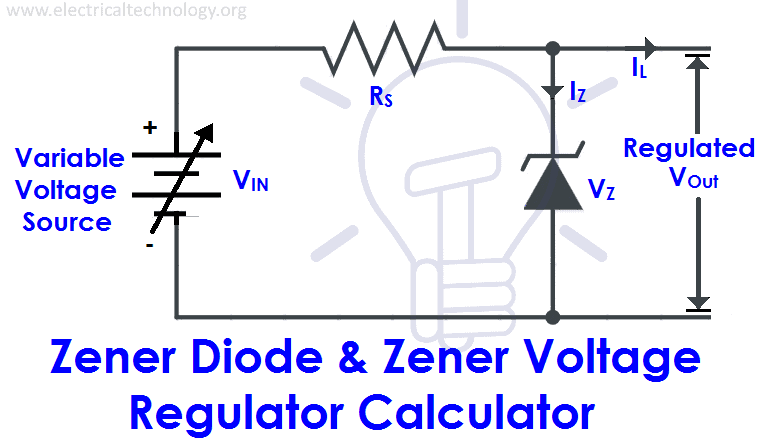

Zener Diode & Zener Voltage Regulator Calculator
Zener Diode & Zener Voltage Regulator Calculator
Formulas and Equations for Zener Diode & Zener Voltage Regulator Calculator
Series Current
IS= VIN – VZ / RS….. (Ohm’s Law Again)
Load Voltage
VL = VZ
Change in Load Voltage
∆VL = IZ x RZ
Output (Regulated) Voltage
VOUT= VIN – IR = VIN – (IZ + IL) / RS = (VIN – IS) / RS
Load Current
IL = VL / RL
Zener Current
IZ = IS – IL
Output ripple
VR (OUT) ≈ VR (IN) x (RZ/RS)
Maximum Series resistance
RS (MAX) = RL (MIN) x [(VIN (MIN) / VZ) -1]
Maximum Series resistance
RS (MAX) = RL (MIN) x [(VIN (MIN) – VZ) / IL(MAX)]
Or Series Resistance
RS = (VL – Vout) / (IZ + IL) = (VL – Vout) / (IS)
Value of Resistor
R = [(VIN (MIN)– VOUT) / (IL + 10)]
Power of Resistor
RP = (VIN (Max) – Vout) 2 / R
Power of Zener Diode
ZP = (VIN (MIN) – VOUT) / R) x VOUT
Enter value and click on calculate. Result will be displayed.
Related Electrical Calculators:
- Circuit Breaker Calculator Calculator with Examples
- Advance Voltage Drop Calculator
- Electrical Wire & Cable Size Calculator (Copper & Aluminum)
- AWG/SWG to mm/mm2, inch/inch2 & kcmil Calculator & Conversion
- Standard Wire Gauge “SWG” Calculator – SWG Size Chart & Table
- American Wire Gauge “AWG” Calculator – AWG Size Chart & Table
- Capacitor Bank in kVAR & µF Calculator for Power Factor Correction
- Power Factor Correction Calculator – How to Find P.F Capacitor in µF & kVAR?
- Voltage Divider Rule – Calculator, Examples & Applications
- Resistor Color Code Calculators – 3, 4, 5 & 6 Bands
- Electrical & Electronics Engineering Calculators
Wowss Good brother ..
Thanks for appreciation :)
Very nice, useful and instant calculation. ThanQ
To calculate Vout , we need Rs
VOUT= Vin – Ir = Vin – (Iz + IL) / Rs = (Vin – Is) / Rs
and then to calculate Rs We need V out again
RS = (VL – Vout) / (IZ + IL) = (VL – Vout) / (IS)
The voltage flowing in the zener diode of a regulator circuit is a negative voltage or that its electrons flowing. If it’s a negative voltage, then load voltage is it positive or negative?
