Capacitor Color Codes – How To Read Capacitor Value? Calculator
How to know the Value of Capacitance of a Capacitor using Standard & Color Codes – Calculator & Examples
Same like the resistor color codes, there are special indications like bands, dots or points are printed on different types of capacitors which are used to show the value of capacitance of a capacitor, its voltage rating and tolerance etc. The use of different colors on a capacitor to show its values and characteristics is known as capacitor color coding.
Related Posts:
- Inductor Color Codes – How To Read Inductor Value? Calculator
- Resistor Color Code Calculator – 3, 4, 5 & 6 Band Resistors Calculation
Click on image to enlarge
Capacitor Standard Codes
Generally, the values of capacitance, voltage rating, tolerance and even the polarity (in case of polarized capacitor) are printed on the large size capacitor. On the other hand, for small capacitors like mica and ceramic capacitors, color codes are used to indicate their values (generally) in pF (picofarad).
The value of ceramic disk capacitors lower than 1000pf is printed on it in the form of digits and numbers. For example, the only number “300” is printed on a capacitor of 300pf.
Those capacitors having capacitance of 1000pf or more, their values can be read by the 3 digits numbers (e.g. 102. 103, 105 etc.) printed on it. These 3 digits color coding can be read as follows.
- 102 = 10 x 102 = 1000 pF (picofarad)
- 103 = 10 x 103 = 10,000 pF (picofarad)
- 105 = 10 x 105 = 1,000,000. pF (picofarad) = 1 μF (microfarad)

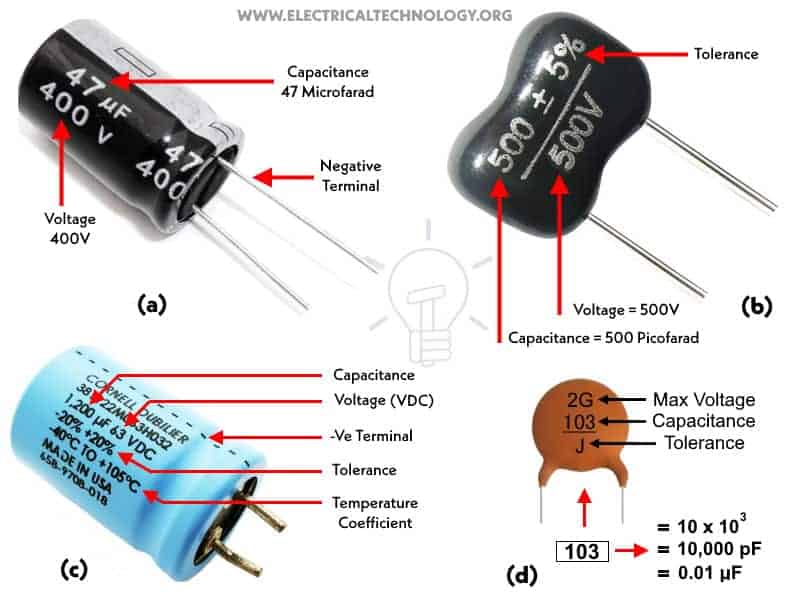

Reading Value of Large Cylindrical Capacitors (Polarized & Non-Polarized)
Generally, the overall rating is written and printed on these capacitors. For example
The fig 2 (a)
- The value of capacitance is 47 μF (microfarad).
- The value of maximum voltage this capacitor bears is 400V DC
The fig 2 (c)
- The value of capacitance is 1200 nF (nanofarad).
- The value of maximum bearable voltage is 500V.
- The value of tolerance is ± 5%. e.g. variation of capacitance in plus minus.
The fig 2 (c)
- The value of capacitance is 1200 μF (microfarad).
- The value of maximum voltage is 63 V DC.
- The value of tolerance is ± 20%.
- The value of temperature coefficient is -40 to +105°C.
The fig 2 (d)

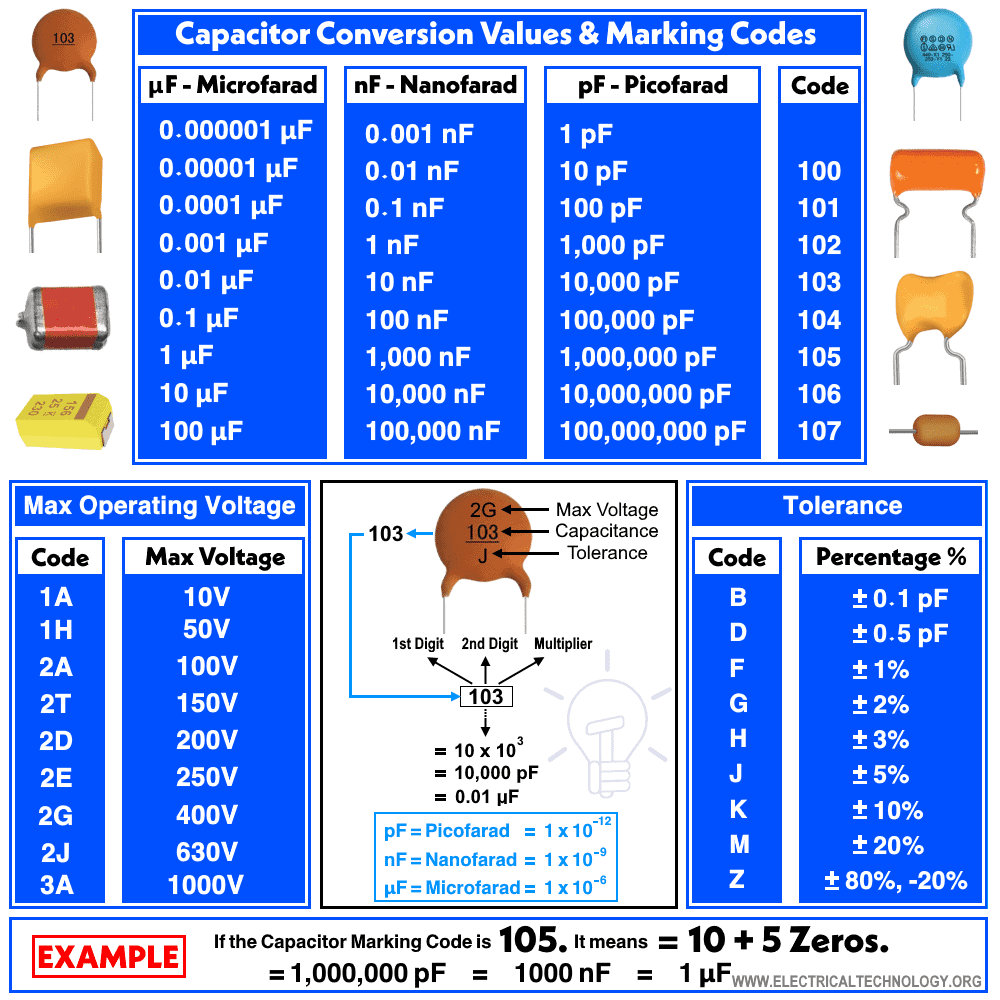

We will show a solved example and table (see fig 3) below to show how to read the value of ceramic capacitors
- The value of capacitance is 0.01 μF (microfarad).
- The value of maximum voltage is “2G” (400V).
- The value of tolerance is “J” ± 5%.
Click on image to enlarge
Keep in mind that polarized and non-polarized capacitors as well as AC and DC capacitors can only be used according to the specifications. For example, A DC capacitor can’t be operated at AC supply and vice versa until and unless mentioned in the user Manual. The VDC and VAC are mentioned on the capacitor rating nameplate with negative (-) sign for negative terminal on it.

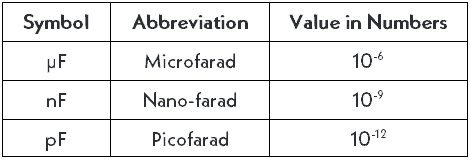

The following symbols and units are used to represent the values of capacitance of capacitors in Microfarad (μF), Nano-farad (nF) & Picofarad (pF).
Symbol | Abbreviation | Value in Numbers |
μF | Microfarad | 10-6 |
nF | Nano-farad | 10-9 |
pF | Picofarad | 10-12 |
Related Posts:
- Capacitor Bank in kVAR & µF Calculator for Power Factor Correction
- Power Factor Correction Calculator – How to Find P.F Capacitor in µF & kVAR?
Reading Value of Small Capacitors (Ceramic)
For small capacitors like ceramic, tantalum, film capacitors etc., the area is very small hence it is not possible to print the value of capacitance and voltage on it. This way, some special notations are used e.g. digits, numbers and alphanumeric characters which indicates the different characteristics and values of capacitors. Generally, the values of these capacitors are in pF (picofarad 1 x 10-9).
Let me show how to read the value of ceramic capacitors?
2 Numerical Values:
If the ceramic capacitor has two numerical values, or any two digits and a letter like 33P, it means the value is 33 picofarad.
- If there is a letter in the middle of two digits like 6R2, it shows:
For example: 6R2 = 6.2 pF.
- If the first or middle letter is “μ”, “p” or “n” instead of R, it represents the main units of capacitance such as
For examples:
- 5μ = 5 Microfarad
- 3μ1 = 3.1 Microfarad
- P42 = 42 picofarad
3 Numerical Values:
Most of the ceramic capacitors have three numerical values printed on it. For example, 103, 104, 105 etc. Let’s see how to read these values. Suppose the printed value on the ceramic capacitor is “103”
- 103 = 10 x 103 = 10,000 pF (picofarad)
Similarly, if the specials marking code on the ceramic capacitor is 105:
- 105 = 10 + 5 Zeros = 1,000,000 pF
-
= 1000 nF = 1 µF
Tolerance of Ceramic Capacitors
There are Capital letters printed on the ceramic capacitor except the value of capacitance such as 22M.

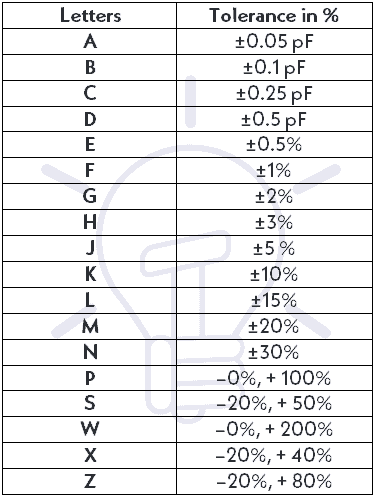

The following table shows the tolerance for ceramic capacitors indicated by Letters.
Letters | Tolerance in % |
A | ±0.05 pF |
B | ±0.1 pF |
C | ±0.25 pF |
D | ±0.5 pF |
E | ±0.5% |
F | ±1% |
G | ±2% |
H | ±3% |
J | ±5 % |
K | ±10% |
L | ±15% |
M | ±20% |
N | ±30% |
P | –0%, + 100% |
S | –20%, + 50% |
W | –0%, + 200% |
X | –20%, + 40% |
Z | –20%, + 80% |
Related Posts:
- How to Calculate the Suitable Capacitor Size in µ-Farads & kVAR for P.F Improvement
- How to Convert Capacitor μ-Farads to kVAR and Vice Versa? – For P.F Correction

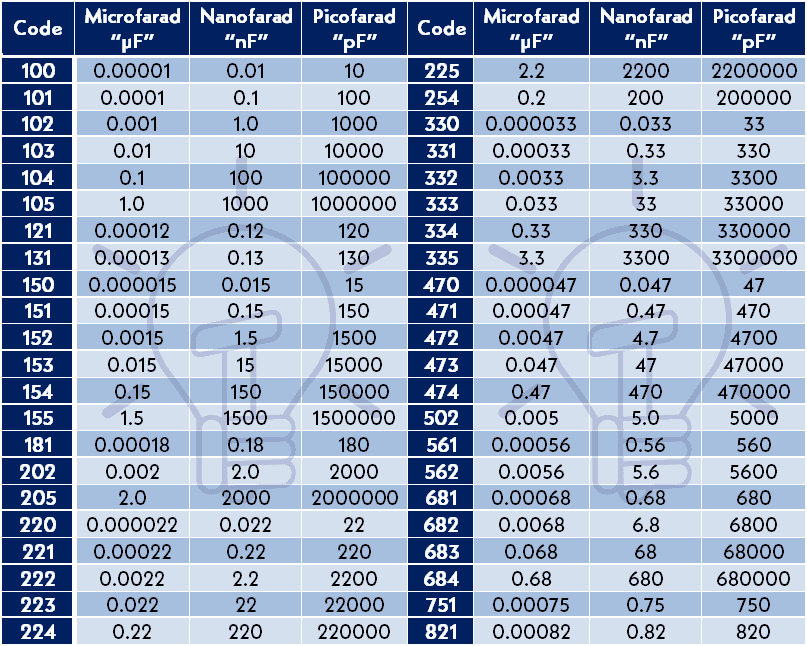

Value of Standard Capacitor Codes
The following table shows the standard value of standard capacitor codes and letters markings printed on it.
Code | Microfarad “μF” | Nanofarad “nF” | Picofarad “pF” | Code | Microfarad “μF” | Nanofarad “nF” | Picofarad “pF” |
100 | 0.00001 | 0.01 | 10 | 225 | 2.2 | 2200 | 2200000 |
101 | 0.0001 | 0.1 | 100 | 254 | 0.2 | 200 | 200000 |
102 | 0.001 | 1.0 | 1000 | 330 | 0.000033 | 0.033 | 33 |
103 | 0.01 | 10 | 10000 | 331 | 0.00033 | 0.33 | 330 |
104 | 0.1 | 100 | 100000 | 332 | 0.0033 | 3.3 | 3300 |
105 | 1.0 | 1000 | 1000000 | 333 | 0.033 | 33 | 33000 |
121 | 0.00012 | 0.12 | 120 | 334 | 0.33 | 330 | 330000 |
131 | 0.00013 | 0.13 | 130 | 335 | 3.3 | 3300 | 3300000 |
150 | 0.000015 | 0.015 | 15 | 470 | 0.000047 | 0.047 | 47 |
151 | 0.00015 | 0.15 | 150 | 471 | 0.00047 | 0.47 | 470 |
152 | 0.0015 | 1.5 | 1500 | 472 | 0.0047 | 4.7 | 4700 |
153 | 0.015 | 15 | 15000 | 473 | 0.047 | 47 | 47000 |
154 | 0.15 | 150 | 150000 | 474 | 0.47 | 470 | 470000 |
155 | 1.5 | 1500 | 1500000 | 502 | 0.005 | 5.0 | 5000 |
181 | 0.00018 | 0.18 | 180 | 561 | 0.00056 | 0.56 | 560 |
202 | 0.002 | 2.0 | 2000 | 562 | 0.0056 | 5.6 | 5600 |
205 | 2.0 | 2000 | 2000000 | 681 | 0.00068 | 0.68 | 680 |
220 | 0.000022 | 0.022 | 22 | 682 | 0.0068 | 6.8 | 6800 |
221 | 0.00022 | 0.22 | 220 | 683 | 0.068 | 68 | 68000 |
222 | 0.0022 | 2.2 | 2200 | 684 | 0.68 | 680 | 680000 |
223 | 0.022 | 22 | 22000 | 751 | 0.00075 | 0.75 | 750 |
224 | 0.22 | 220 | 220000 | 821 | 0.00082 | 0.82 | 820 |
Capacitor Color Codes
How to Read Capacitor Color Codes?

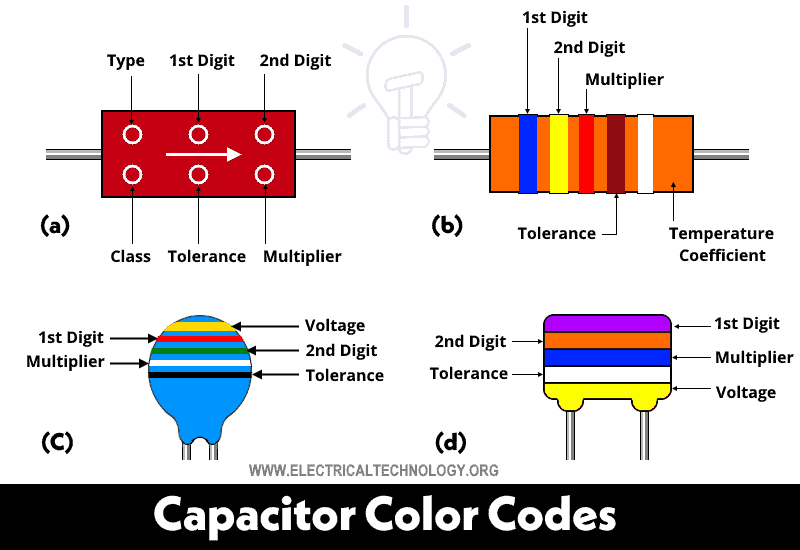

Except marking and alphanumeric codes, different color codes are also used to identify the value of a capacitor. These colored bands (on ceramic tubular capacitors) or dots ( on Mica capacitors) are printed on the outer surface of the capacitor.
Click on image to enlarge
Capacitance of Capacitor Color Code
The value of a capacitor having five color bands (or 5 dots) can be read using the following table.
In the following tables, the first three color bands show the value of capacitance, the fourth band as tolerance in percentage and the fifth band shows the temperature coefficient. For example:
- 1st Color Band = First Number of Value of Capacitor.
- 2nd Color Band = Second Number of value of Capacitor.
- 33rd Color Band = The number of Zeros (as multiplier) with the first two digits of capacitor (In numbers).
- 4th Color Band = Tolerance in percentage.
- 5th Color Band = Temperature coefficient.
Related Posts:

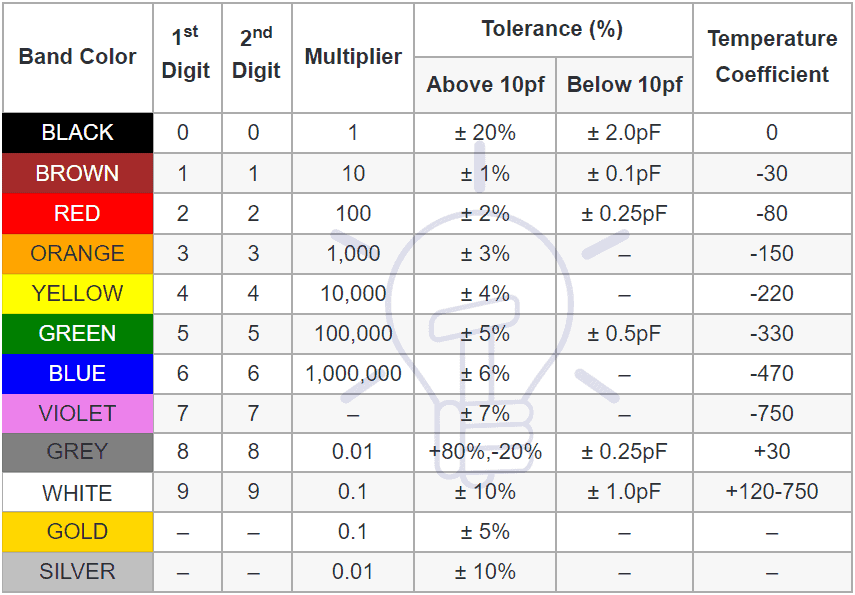

Table for 5 bands color codes for ceramic capacitors
Band Color | 1st Digit | 2nd Digit | Multiplier | Tolerance (%) | Temperature Coefficient | |
Above 10pf | Below 10pf | |||||
BLACK | 0 | 0 | 1 | ± 20% | ± 2.0pF | 0 |
BROWN | 1 | 1 | 10 | ± 1% | ± 0.1pF | -30 |
RED | 2 | 2 | 100 | ± 2% | ± 0.25pF | -80 |
ORANGE | 3 | 3 | 1,000 | ± 3% | – | -150 |
YELLOW | 4 | 4 | 10,000 | ± 4% | – | -220 |
GREEN | 5 | 5 | 100,000 | ± 5% | ± 0.5pF | -330 |
BLUE | 6 | 6 | 1,000,000 | ± 6% | – | -470 |
VIOLET | 7 | 7 | – | ± 7% | – | -750 |
GREY | 8 | 8 | 0.01 | +80%,-20% | ± 0.25pF | +30 |
WHITE | 9 | 9 | 0.1 | ± 10% | ± 1.0pF | +120-750 |
GOLD | – | – | 0.1 | ± 5% | – | – |
SILVER | – | – | 0.01 | ± 10% | – | – |

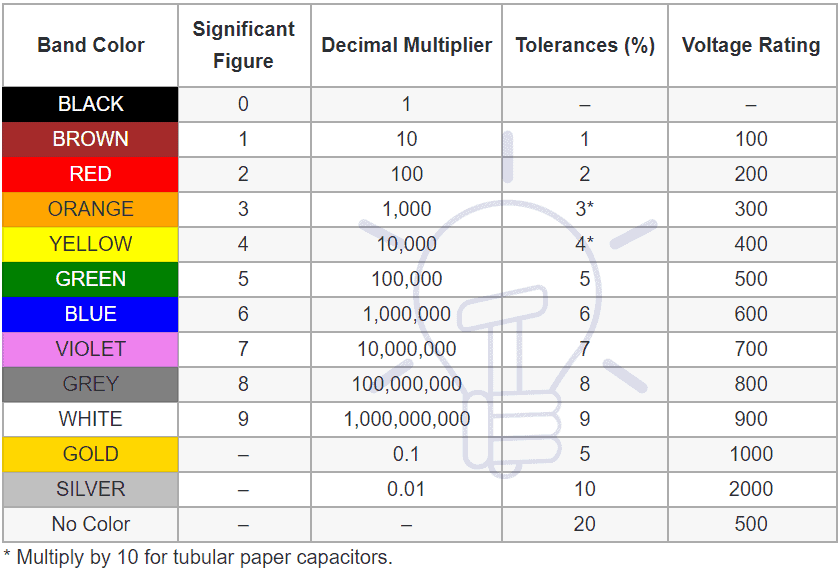

Table for 4 bands color codes for ceramic & tubular paper capacitors with voltage rating (especially for dot color code for mica and molded paper capacitors).
Band Color | Significant Figure | Decimal Multiplier | Tolerances (%) | Voltage Rating |
BLACK | 0 | 1 | – | – |
BROWN | 1 | 10 | 1 | 100 |
RED | 2 | 100 | 2 | 200 |
ORANGE | 3 | 1,000 | 3* | 300 |
YELLOW | 4 | 10,000 | 4* | 400 |
GREEN | 5 | 100,000 | 5 | 500 |
BLUE | 6 | 1,000,000 | 6 | 600 |
VIOLET | 7 | 10,000,000 | 7 | 700 |
GREY | 8 | 100,000,000 | 8 | 800 |
WHITE | 9 | 1000,000,000 | 9 | 900 |
GOLD | – | 0.1 | 5 | 1000 |
SILVER | – | 0.01 | 10 | 2000 |
No Color | – | – | 20 | 500 |
* Voltage Rating for K type Capacitors
** Multiply by 10 for tubular paper capacitors.

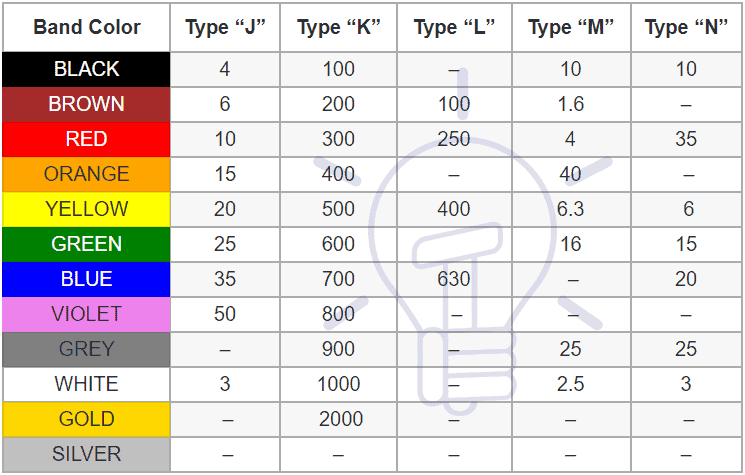

Voltage of Capacitor Color Code
Band Color | Type “J” | Type “K” | Type “L” | Type “M” | Type “N” |
BLACK | 4 | 100 | – | 10 | 10 |
BROWN | 6 | 200 | 100 | 1.6 | – |
RED | 10 | 300 | 250 | 4 | 35 |
ORANGE | 15 | 400 | – | 40 | – |
YELLOW | 20 | 500 | 400 | 6.3 | 6 |
GREEN | 25 | 600 | 16 | 15 | |
BLUE | 35 | 700 | 630 | – | 20 |
VIOLET | 50 | 800 | – | – | – |
GREY | – | 900 | – | 25 | 25 |
WHITE | 3 | 1000 | – | 2.5 | 3 |
GOLD | – | 2000 | – | – | – |
SILVER | – | – | – | – | – |
Note: The letters of “J”, “K”, “L”, “M” & “N” shows the following types of capacitors
- Type “J” = Dipped Tantalum Capacitors
- Type “K” = Mica Capacitors
- Type “L” = Polyester & Polystyrene Capacitors
- Type “M” = Electrolytic Four-Bands Capacitors
- Type “N” = Electrolytic Three-Bands Capacitors
Related Posts

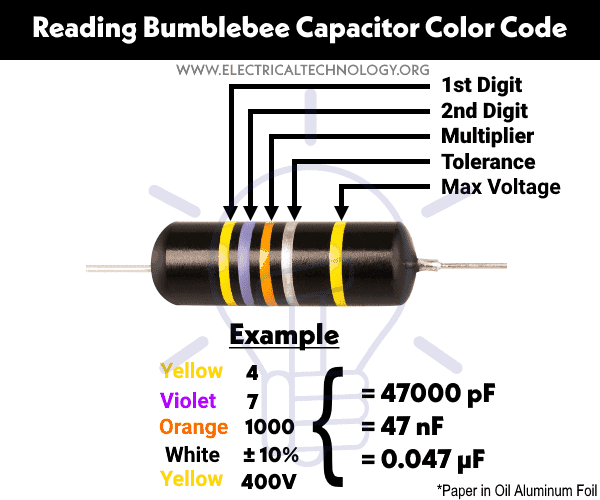

The following fig shows how to read the bumblebee capacigor color codes with a solved example of 0.047µF (equivalent to 47000 pF or 47 nF).
How to Read Color Codes for Disc & Ceramic Capacitors?
Color codes for non-polarized mica molded and polyester capacitors like ceramic and disc capacitors are an old school method (BS-EN 60062) and hence replaced by the capacitor marking ( BS-1852 Standard) with alphanumeric codes. If you still find the old age color coded capacitor, you may identify the value of the ceramic capacitor using the following example (see fig 3(c) and 3(d).
Capacitor Color Codes Calculator
The following 5-bands capacitor calculator will calculate the value of capacitance of five colored strips printed on a capacitor. This calculator supports 5-colored strips and values of capacitance in F (Farad), µF (micro-Farad), nF (nano-farad) and pF (pico-farad). Just select the color codes of the capacitor and click on calculate for the desired value of capacitance, Its tolerance and maximum voltage of the (Type K) capacitor.
Capacitor Code to Capacitance Value of Capacitor Calculator
The following capacitor value calculator calculates the values of capacitance for ceramic capacitors. Just put the capacitor code marking such as “103” and click on calculate. The result will show the value of capacitance of ceramic capacitor in μF (microfarad = 1×10-6), nF (nano-farad = 1×10-9) or pF (picofarad = 1×10-12).
Capacitance Value to Capacitor Code Calculator
The following capacitor code calculator calculates the code of capacitance for ceramic capacitors. Just put the value of capacitance of ceramic capacitor in μF (microfarad = 1×10-6), nF (nano-farad = 1×10-9) or pF (picofarad = 1×10-12) and click on calculate. The result will show the code of capacitance of ceramic capacitors such as “103”, “104”, “105” and so on depending on the input value.
Related Posts:
- Electrical Wiring Color Codes for AC & DC – NEC & IEC
- ABYC Cable & Wire Color Codes for Yacht, Boat & Marine Wiring
Capacitor Standard & Color Code Charts
The above tables are given below in images & charts for reference. (Click images to enlarge)
